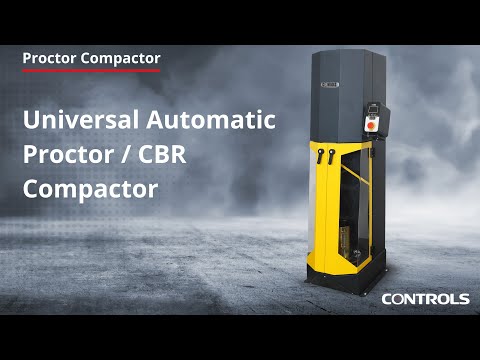

Brand/Supplied From : Controls – Italia
Standard : ASTM D1883, ASTM D698, BS 1377:4, ASTM D558, ASTM D1557, AASHTO T99, AASHTO T180, NF P94-093, UNE 103-500, AASHTO T193(padanan SNI 1744-2012), EN 13286-47, EN 13286-2, AS 1289.5.2.1, AS 1289.5.1.1
Kode Barang : 33 - T3712
General Descriptions :
Technical Specifications :
| Mould/specimen dia. | 100 to 152.4 mm (4” and 6”) |
| Rammer face dia. (Interchangeable conforming to Standards, see table below) | Circulal 50 and 2" (50.8 mm) |
| Rammer weight (interchangeable conforming to Standards, see table below) | 2.49, 2.50, 2,70* kg 4.50, 4.54, 4,90* kg |
| Rammer dropping height (digitally set conforming to Standards, see table) | 300, 305, 450, 457 mm |
| Blow rate | 30 strokes / min |
| Safety features | Compliant with CE directives |
| Power rating | 650 W approx. |
| Overall dimensions (wxdxh) | 494 x 595 x 2500 mm |
| Weight approx.: | 150 kg |
Rammer application guide.
The following table summarizes all the Standard requirements. This model can surely satisfy other National Standards too.
| Standards | Rammer face dia. | Rammer weight | Rammer drop height |
| ASTM D698 | 50.8 mm | 2.49 kg | 304.8 mm |
| ASTM D558 | 50.8 mm | 2.49 kg | 304.8 mm |
| ASTM D1557 | 50.8 mm | 4.54 kg | 457.2 mm |
| ASTM D1883 | 50.8 mm | 2.49 kg 4.54 kg | 304.8 mm 457.2 mm |
| AASHTO T99 | 50.8 mm | 2.49 kg | 305 mm |
| AASHTO T180 | 50.8 mm | 4.54 kg | 457 mm |
| AASHTO T193 | 50.8 mm | 2.49 kg 4.54 kg | 305 mm 457 mm |
| EN 13286-2 EN 13286-47 NF P94-093 | 50 mm | 2.50 kg 4.50 kg | 305 mm 457 mm |
| BS 1377:4 | 50 mm | 2.50 kg 4.50 kg | 300 mm 450 mm |
| AS 1289.5.1.1 | 50 mm | 2.70 kg | 300 mm |
| AS 1289.5.2.1 | 50 mm | 4.90 kg | 450 mm |
Ordering Info :
Upgrading kit
