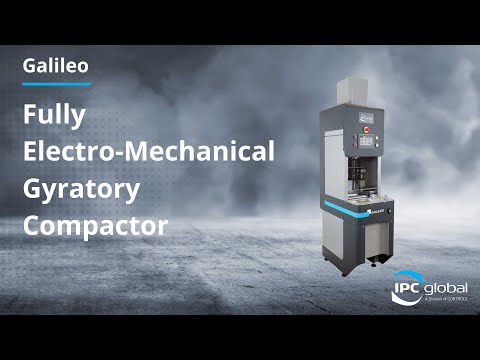

Fully Electro-Mechanical Gyratory Compactor GALILEO
Merek/Suplied From : IPC/ControlsGroup – Italia
Kode Barang : 78-PV20G02
Standard : EN 12697-10, EN 12697-31, AASHTO T312, ASTM D6925, AS 2891.2.2 (Setara dengan SNI 03-6838-2002)
Main Features
High precision, robust load mechanism combined with an extremely rigid frame assures high accuracy and repeatability
Load cell fitted directly on the vertical actuator for accurate load measurement and feedback control
Quick and easy manual/mechanical adjustment of the gyratory angle shown on the display
User defined axial stress and speed of rotation
Sliding transparent door with safety interlock
Catch tray to collect expelled liquids using perforated moulds
Fresh concrete configuration available
Easy control using the integrated 7" colour touchscreen panel or connected PC
User friendly PC software for data analysis and tests set up. Remote communication is available to receive immediate diagnostics
Automatic data saving on USB or on Windows PC
Lightweight yet robust moulds strictly comply with international Standards
Safe and easy mould insertion and extraction with automatic lifting ensures low effort for the operator and higher productivity
Simultaneous extraction of last specimen for higher productivity
Easy specimen extraction with the integrated extruder
Mounted on swivel caster wheels for easy moving and positioning
Technical Specifications
Model
Galileo 78-PV20G0X
Consolidation pressure
10 – 1000 kPa for 150 mm diam.
25 – 2200 kPa for 100 mm diam.
Gyratory motion and
Vertical load
Electromechanical
Angle adjustment
Manual
Gyratory angle range
0 -3° ±0.01
Price : Call For Info
